FEATURES
Super mechanical strength and excellent abrasive resistance.
Superior heat and cold resistance.
Oil resistance.
Light weight.
Could accept custom-made.
(Packing, or Length and can connect with different fitting or coupler.)
SPECIFICATIONS
| PART NO. |
I.D
(mm)
|
O.D(mm) |
Length |
Temperature |
Working Pressure at 23°C (73.4 °F) |
| HUS2504 |
2.5 |
4 |
200M |
-20°C~60°C (-5°F ~+140°F) |
150PSI (1MPa) |
| HUS0406 |
4 |
6 |
200M |
| HUS5008 |
5 |
8 |
100M |
| HUS6510 |
6.5 |
10 |
100M |
| HUS0812 |
8 |
12 |
100M |
135PSI (0.9MPa) |
| HUS1014 |
10 |
14 |
50M |
100PSI (0.67MPa) |
| HUS1216 |
12 |
16 |
50M |
| HUS95135 |
9.5 |
13.5 |
50M |

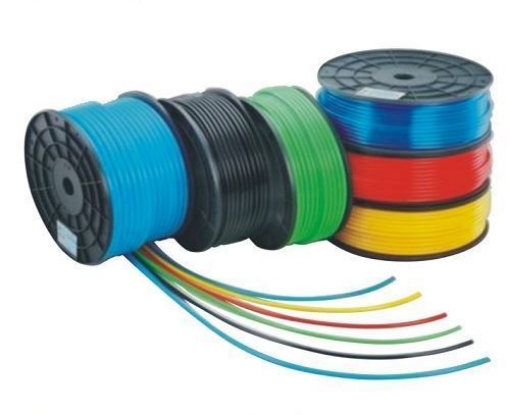

NOTE: Colors Available
Green(GN), Yellow(YE), Orange(OR), Blue(BS), Black(BK), Red(RD), Clear(CL)
