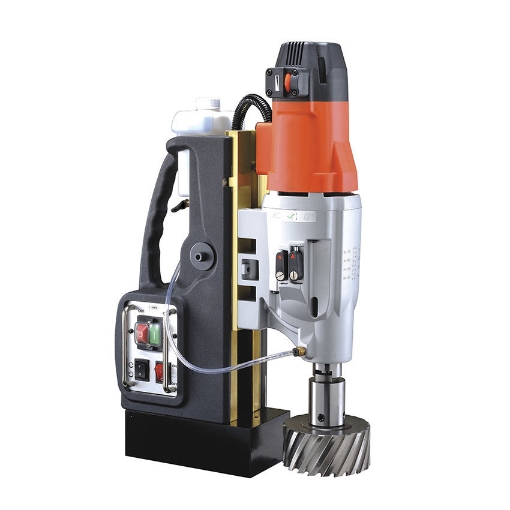

4 Speed Magnetic Drilling Machine MD120-4

Name: 4 Speed Magnetic Drilling Machine MD120-4
SKU: MD120-4
Price: 280000.00 PHP
Availability: InStock

Manufacturer: AGP

4 Speed Magnetic Drilling Machine

SKU: MD120-4

Vendor: Screwking Hardware Corp.

Availability: In stock

₱280,000.00

Qty:

i h

Delivery date: 3-5 days

FEATURES:

2 000 W motor with overload protection
Stepless variable speed control with constant speed electronics
Four speed gearbox with mechanical clutch
MT3 spindle for a wide range of cutting tools and attachments to be directly mounted
Unique through-the-spindle cutting fluid feed system
Reversible motor rotation for tapping
Special tang-drive arbors for both 31.75mm and 19.05mm shank cutters included

SPECIFICATIONS:

Model	MD120/4
Power Input	110-120V:1700W, 220-240V:2000W
Voltage	110-120V~ 50-60Hz, 220-240V~ 50-60Hz
No/Full Load Min-1	Speed 1	35-120
	Speed 2	70-220
	Speed 3	80-250
	Speed 4	140-450
Max. Capacity	Dia. X Depth of Cut with 31.7mm (1-1/4") Weldon Shank Annular Cutter Arbor	120mm x 50mm
	Dia. X Depth of Cut with 19.05mm (3/4") Weldon Shank Annular Cutter Arbor	120mm x 50mm
	Dia. X Depth of Cut with Quick-Release Arbor	60mm x 50mm
	Dia. X Depth of MT3 Twist Drill Bit	32mm x 200mm
	Dia. X Depth of MT3 Chuck Adaptor With Twist Drill Bit	16mm x 120mm
	Dia. X Depth of Taps	32mm x 40mm
Overload Protection	With
Magnetic Adhesion	32,000 N
Net Weight	29.4kg(64.82Lbs)

Standard Accessories: Wrench M8, Hex Key M2.5 & M5, Chip Guard Kit, Coolant Tank Kit,

Safety Chain, Drift, 31.75 Annular Cutter Set, Screw Arbor, 19.05 Annular Cutter Set Screw Arbor
