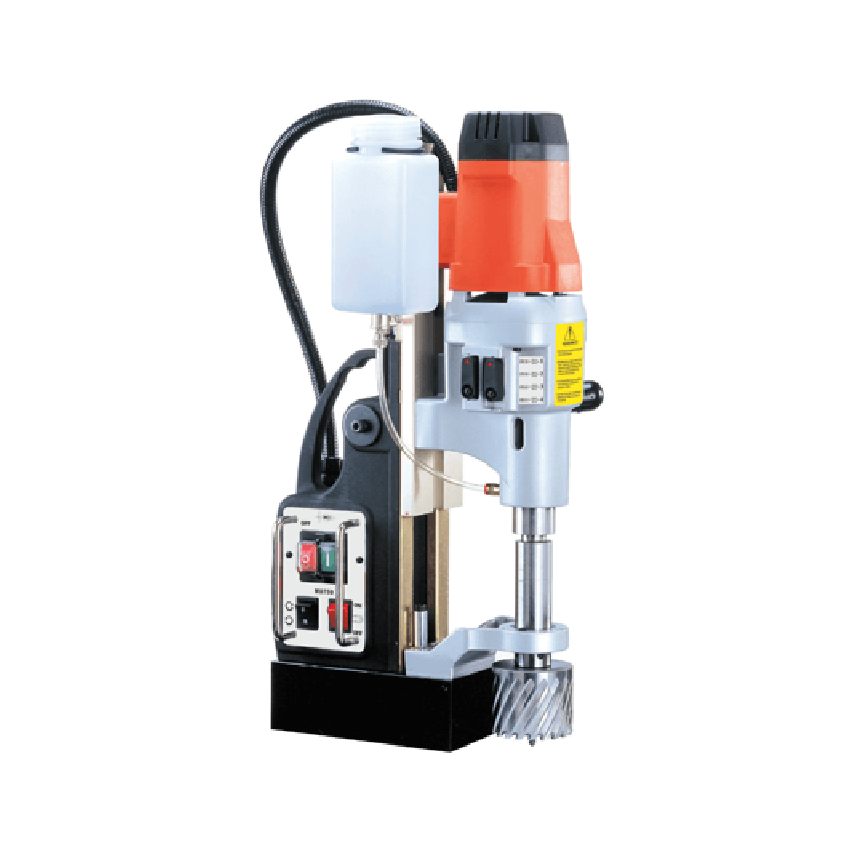

FEATURES:
- 2 000 W motor with overload protection
- Four speed mechanical gearbox
- MT3 spindle for a wide range of cutting tools
- Unique through-the-spindle cutting fluid feed system
- Reversing switch for tapping
SPECIFICATIONS:
| Model |
MDS750/4 |
|---|
| Power Input |
110-120V:1700W, 220-240V:2000W |
|---|
| Voltage |
110-120V~ 50-60Hz, 220-240V~ 50-60Hz |
|---|
| No/Full Load Min-1 |
Speed 1 |
150 / 90 |
|---|
| |
Speed 2 |
200 / 120 |
|---|
| |
Speed 3 |
300 / 180 |
|---|
| |
Speed 4 |
380 / 230 |
|---|
| Max. Capacity |
Dia. X Depth of Cut |
75 mm x 50 mm (3" x 2")
|
|---|
| |
Dia. X Depth of MT3 Twist Drill Bit |
32 mm x 150 mm (1-1/4" x 4-7/8") |
|---|
| |
Dia. X Depth of MT3 Chuck Adaptor With Twist Drill Bit |
16mm x 110mm (5/8" x 4-1/2") |
|---|
| |
Dia. X Depth of Taps |
25.4 mm x 40 mm (1" x 1-9/16") |
|---|
| Magnetic Adhesion |
32,000 N |
|---|
| Overload Protection |
With |
|---|
| Net Weight |
27kg (59.52 Lbs) |
|---|
Standard Accessories: Wrench M8, Hex.key, M2.5 & M4, Chip Guard Kit, Coolant tank Kit, Safety Chain, Drift, Wrench M17
