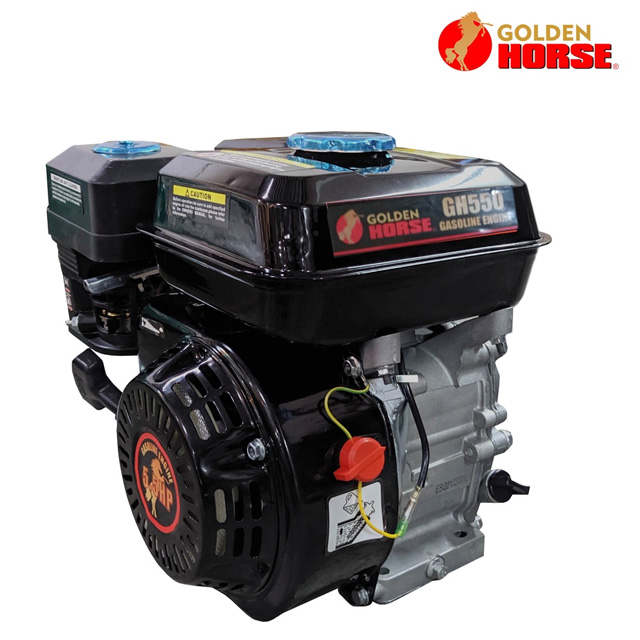

GOLDEN HORSE Gasoline Engine GH550

Gasoline Engine

₱1.00

Manufacturer: Golden Horse

SKU: GH550

Vendor: Screwking Hardware Corp.

Choose Variation: *

a change or difference in condition, amount, or level, typically with certain limits

Qty:

+ -

MODEL	GH550	GH700M	GH700	GH900M	GH900	GH1300M	GH1300	GH1500M	GH1500
Engine Type	Overhead Valve (OHV), Horizontal shaft, single cylinder with cast iron sleeve, Aluminum head and crankcase four stroke cycle, air-cooled gasoline engine.
Max. Output (HP)	5.5	7.0	7.0	9.0	9.0	13	13	15	15
Displacement (cc)	163	212	212	270	270	389	389	420	420
Bore (mm)	68	70	70	77	77	88	88	90	90
Stroke (mm)	45	55	55	58	58	64	64	66	66
Max. speed (rpm)	3600
Fuel Consumption (g/Hp.Hr)	230
Fuel Capacity	3.6			6.0
Lube oil capacity	0.6			1.1
Lubricant	Engine Oil SAE40
Lubrication	Mechanical Splash
Governor	Mechanical
Carburetor	Float Type
Starting System	Recoil
Ignition System	Transistorized
Dimension (LxWxH)	365x320x360	365x320x360	365x320x360	480x435x505	480x435x505	480x435x505	480x435x505	480x435x525	480x435x525
N.W/G (kg)	15/17	16/18	16/18	23.52/25.44	23.52/25.44	28.7/30.6	28.7/30.6	28.72/30.64	28.72/30.64

BRAND : GOLDEN HORSE

WARRANTY DURATION : 6 Months

WARRANTY TYPE : Supplier
