FEATURES:

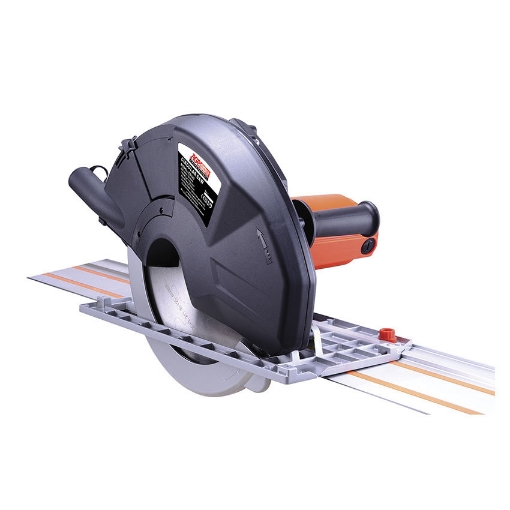

With 128 mm depth of cut, this is the perfect saw for neat, on-site cutting of sandwich panels
1 800 W motor with soft-start and overload protection
LED load indicator for maximum cutting efficiency and control
Excellent dust & debris control
The optional guide rail makes long and accurate cuts fast and easy, even with deeply corrugated panels
SPECIFICATIONS:
Model | CS320 |
---|
Power Input | 110-120V: 1700W, 220-240V: 1800W |
---|
Voltage | 110-120V~ 50-60Hz , 220-240V~ 50-60Hz |
---|
No Load Min-1 | 1700 |
---|
Max Blade Diameter | 320mm |
---|
Arbor Hole Diameter | 25.4mm (1 Inch) |
---|
Max Cutting Depth | 128mm (121mm On Guide Rail) |
---|
Soft Start & Overload Protection | With |
---|
Dimensions(LxWxH) | 500mm x 342mm x 355mm |
---|
Net Weight | 8.4kg (18.52 Lbs) |
---|
Standard Accessories: 6mm Hex Wrench, Side Handle
