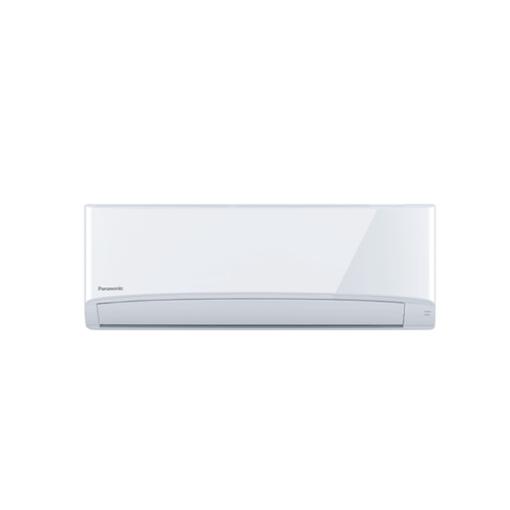

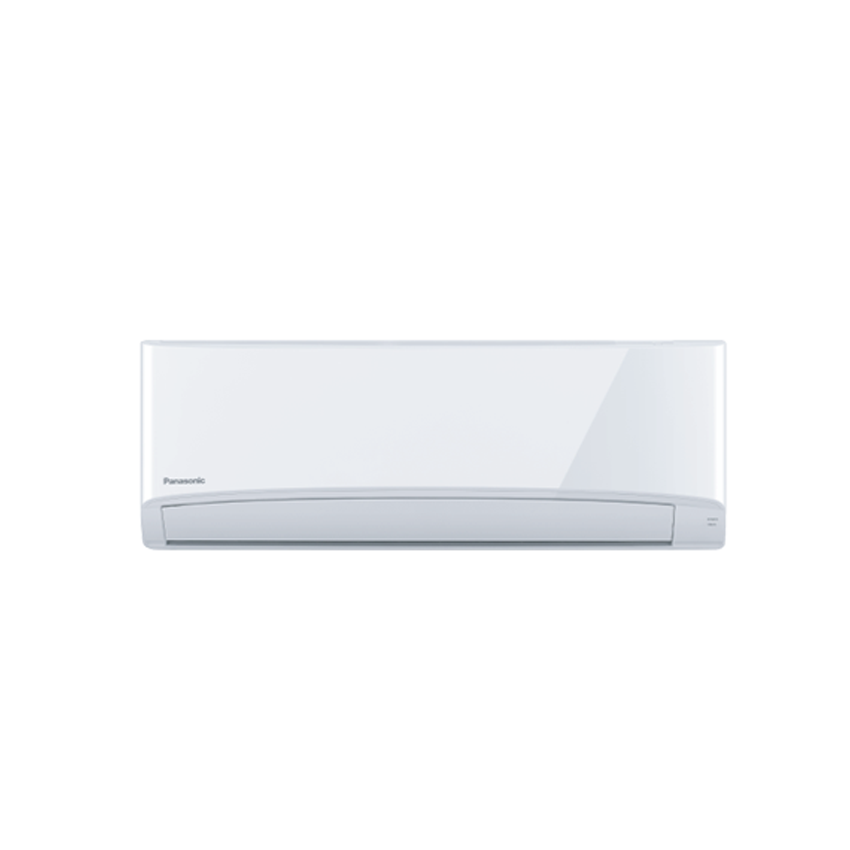

| MODEL | [60hZ] | CS-PN24UKQ 2.5HP [CU-PN24UKQ] |
|---|
| Cooling Capacity | (min-max) | Kj/h | 24,120 |
|---|
| (min-max) | kW | 6.70 |
|---|
| EER | (min-max) | kj/hW | 11.0 |
|---|
| Electrical Data | Voltage | V | 230 |
|---|
| Running Current | A | 9.6 |
|---|
| Power Input | W | 2,190 |
|---|
| Moisture Removal | L/h | 3.8 |
|---|
| (Pt/h) | 8.0 |
|---|
| Air Circulation | m³/min. | 52.5 (1,850) |
|---|
| [Indoor/Hi] | ft³/min | 20.8 (734) |
|---|
| Noice Level | Indoor (Hi/Lo) | (dB-A) | 47/42 |
|---|
| Outside (Hi) | (dB-A) | 60 |
|---|
| Dimensions | Height | mm | 302 (695) |
|---|
| inch | 11-29/32 (27-3/8) |
|---|
| Width | mm | 1,102 (875) |
|---|
| inch | 43-13/32 (32-15/32) |
|---|
| Depth | mm | 244 (220) |
|---|
| inch | 9-5/8 (12-5/8) |
|---|
| Net Weight | kg | 12 (26) |
|---|
| Lb | 54 (119) |
|---|
| Refrigerant | Liquid Side | mm | ø 6.35 |
|---|
| Pipe Diameter | inch | 1/4 |
|---|
| Gas Side | mm | ø 12.70 |
|---|
| inch | 5/8 |
|---|
| Pipe Extension | Chargeless Pipe Length | m | 7.5 |
|---|
| Maximum Pipe Length | m | 20 |
|---|
| Maximum Elevation Length | m | 15 |
|---|
| Additional Refrigerant Gas* | g/m | 10 |
|---|
| Power Supply | Outdoor |
|---|
