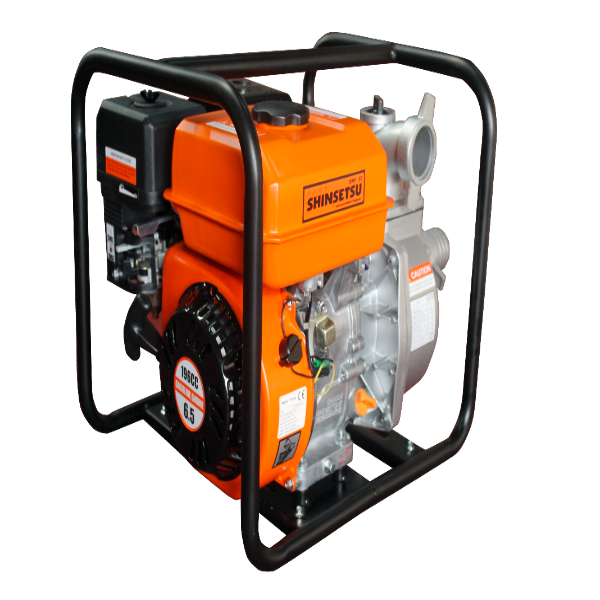

Shinsetsu Clean Water Pump Gasoline, SWP-100

Specifications

Displacement 270 cc

Rated Power 5.0 kW(6.5 hp)/3600 rpm

Total Head Lift 30 m

Max Power 5.5 kW(7.5 hp)/3600 rpm

Suction Head 8 m

Fuel Tank Capacity 6.3 L

Maximum Discharge Capacity 75 m³/h

Fuel Consumption

Ratio 3.74 (g/KWh)

Diameter Suction and Pipe 100 mm(4 in)

Net Weight 43 kg

Standard Accessories:

• 1 pc Strainer

• 2 pcs Pipe Connection Gasket

• 1 pc Tool Set

• 2 pcs Joint Pipe

• 2 pcs Joint Grip

• 3 pcs Hoop Assembly

Specifications

Displacement 270 cc

Rated Power 4.8 kW(6.7 hp)/3600 rpm

Total Head Lift 25 m

Max Power 5.5 kW(7.8 hp)/3600 rpm

Suction Head 7 m

Fuel Tank Capacity 5 L

Maximum Discharge Capacity 55 m³/h

Fuel Consumption Ratio ≤ 374 (g/kWh)

Diameter Suction and Pipe 80 mm(3 in)

Net Weight 270 kg

Standard Accessories:

• 1 pc Filter Cover

• 1 pc Suction Water Tube

• 1 pc Spark Plug Wrench

• 2 pcs Interface Hose

• 2 pcs Joint Hose

• 2 pcs Ring Hose Joint Seal

• 3 pcs Hoop Assembly
