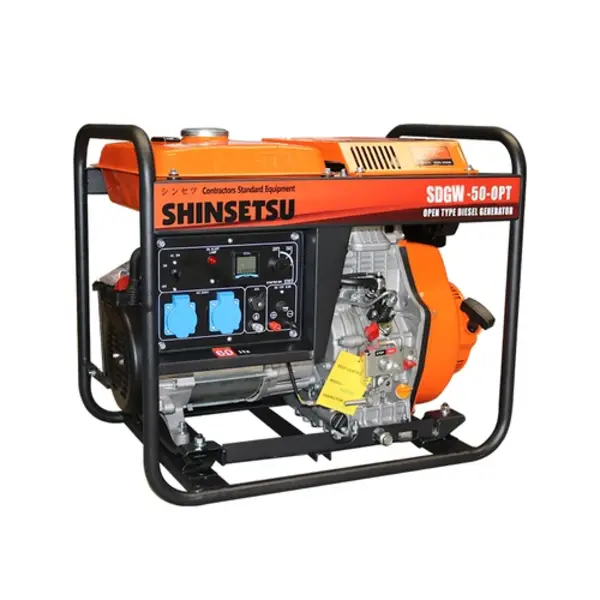

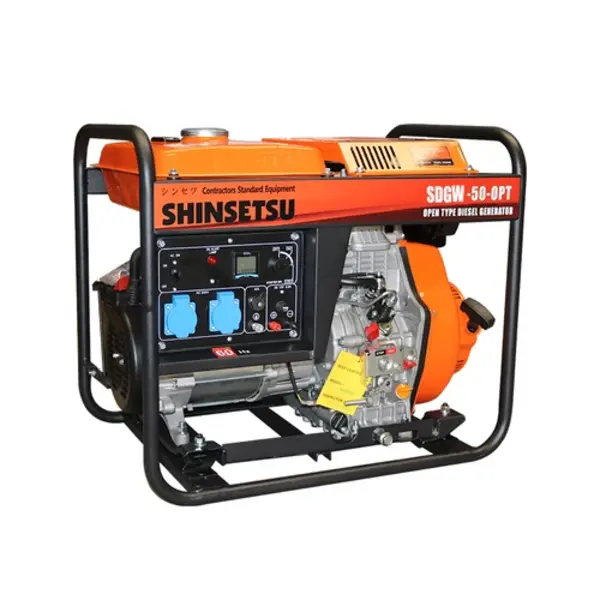

Shinsetsu Portable Diesel Welding Generator, SDGW-50-OPT
Product Overview: The Shinsetsu SDGW-50-OPT Portable Diesel Welding Generator delivers reliable welding and continuous electric power wherever you need it. Engineered for professionals, this robust unit combines high welding performance with stable electrical output, making it essential for construction sites, remote repairs, and agricultural use. Built with durability and ease of transport in mind, the SDGW-50-OPT sets the standard for portable diesel welding generators.
Key Features:
- Powerful Diesel Engine: Equipped with the highly efficient S186FA(E) engine, the generator provides rated power of 6.6 kW (8.9 hp) at 3,600 rpm, with a maximum output of 7.3 kW (10 hp).
- Reliable Welding Capability: Offers a wide DC welding current range of 20 A – 180 A, compatible with electrode sizes from 1.6 mm to 4.0 mm, and supports a welding voltage of 20 – 30 V for various applications.
- Dual Starting System: Choose from manual or electric start for convenient and flexible operation, even in demanding environments.
- Extended Operation: With a 12.5 L fuel tank, the generator runs continuously for up to 5.8 hours, ensuring long productivity without frequent refueling.
- Versatile Power Output: Single phase AC output with a power factor of 1.0, rated output of 4.6 kVA, and voltage options from 110 V to 240 V—ideal for both powering tools and battery charging (12 V, 8.3 A).
- Low Noise Level: Operates at 77 dB measured at 7 meters, minimizing site disturbance.
- Portability & Durability: Compact packing size (760 x 540 x 675 mm) and solid build with a net weight of 115 kg, suitable for mobile applications.
Technical Specifications:
| Parameter | Value | |-----------------------|-----------------------------| | Engine Model | S186FA(E) | | Rated Power | 6.6 kW (8.9 hp) @ 3,600 rpm | | Maximum Power | 7.3 kW (10 hp) @ 3,600 rpm | | Displacement | 418 cc | | Fuel Tank Capacity | 12.5 L | | Rated Output | 4.6 kVA | | Rated Voltage | 110 V – 240 V | | Frequency | 50 Hz / 60 Hz | | Welding Current (DC) | 20 A – 180 A | | Electrode Size | 1.6 mm – 4.0 mm | | Welding Voltage | 20 – 30 V | | DC Output | 12 V – 8.3 A | | Noise Level | 77 dB @ 7 m | | Continuous Run Time | 5.8 hrs | | Net Weight | 115 kg | | Packing Size | 760 x 540 x 675 mm |
Complete Standard Accessories:
- Welding Face Mask
- Electrode Holder
- Ground Clamp
- Battery Charging Clips/Clamps
- Fuel Funnel with Hose
- Welding Cable Quick Connectors
- AC Outlet Plugs/Connectors
- Basic Tool Kit
Summary: The Shinsetsu SDGW-50-OPT stands out as a top-tier, portable diesel welding generator for professionals who demand power, efficiency, and rugged reliability. From heavy-duty site applications to emergency off-grid repairs, it’s your go-to solution for safe and consistent welding and electric power.
Choose the Shinsetsu SDGW-50-OPT for unmatched performance and productivity.
For higher output requirements, see also the Shinsetsu SDGW-70-OPT model.
