Product Description: DORMER CARBIDE BURR BALL NOSED TREE, P811

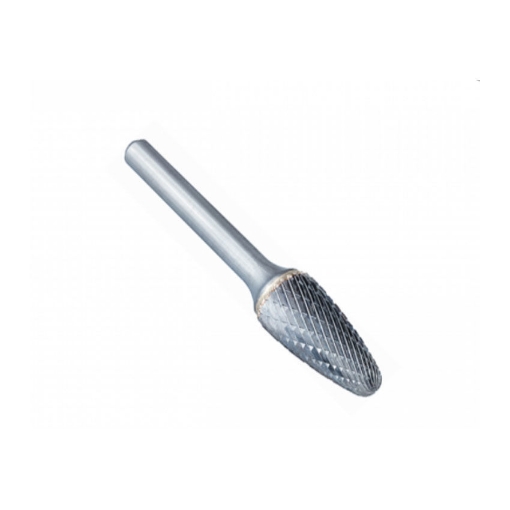

DORMER CARBIDE BURR BALL NOSED TREE, P811
Engineered for professional machinists and demanding metalworking environments, the Dormer Carbide Burr Ball Nosed Tree P811 series sets the benchmark for superior performance and durability. Constructed from premium carbide material and featuring a precision-ground double cut geometry with a bright, wear-resistant coating, these burrs deliver maximum productivity and operational excellence.
Key Features:
- High-Quality Carbide Construction: Ensures exceptional strength, wear resistance, and extended tool life—ideal for high-intensity applications.
- Advanced Double Cut Geometry: The first-choice solution for general machining. Double cut flutes improve ease of control, deliver smoother operation, and minimize operator fatigue, while significantly increasing the metal removal rate for fast and efficient machining.
- Bright Coating: Enhances chip evacuation, reduces loading, and maintains optimal surface finish on the workpiece across diverse materials.
SPECIFICATION:
| Model Size | Cutting Diameter (Width/Height) | Shank Diameter | Overall Length | Approximate Weight |
|---|
| P811 3.0 x 3.0 | 3.0 mm | 3.0 mm | 38 mm | ~0.005 kg (5g) |
| P811 6.0 x 6.0 | 6.0 mm | 6.0 mm | 50 mm | ~0.020 kg (20g) |
| P811 8.0 x 6.0 | 8.0 mm | 6.0 mm | 65 mm | ~0.025 kg (25g) |
| P811 9.6 x 6.0 | 9.6 mm | 6.0 mm | 64 mm | ~0.030 kg (30g) |
| P811 12.7 x 6.0 | 12.7 mm | 6.0 mm | 70 mm | ~0.050 kg (50g) |
| P811 16.0 x 6.0 | 16.0 mm | 6.0 mm | 69 mm | ~0.060 kg (60g)
|
Brand:Dormer
Applications:Perfect for deburring, shaping, and removing material from a wide range of metals including steel, stainless steel, cast iron, and non-ferrous alloys. This ball nosed tree profile is exceptionally effective on contouring, profiling, and surface finishing tasks in fabrication, production, and maintenance environments.
Choose Dormer P811 Carbide Burrs for:
- Consistent, high-performance results in general machining.
- Superior control and faster metal removal with double cut technology.
- Reliable, long-lasting tool durability.
Elevate your machining efficiency and quality—trust Dormer, the professional’s choice for carbide burrs.
