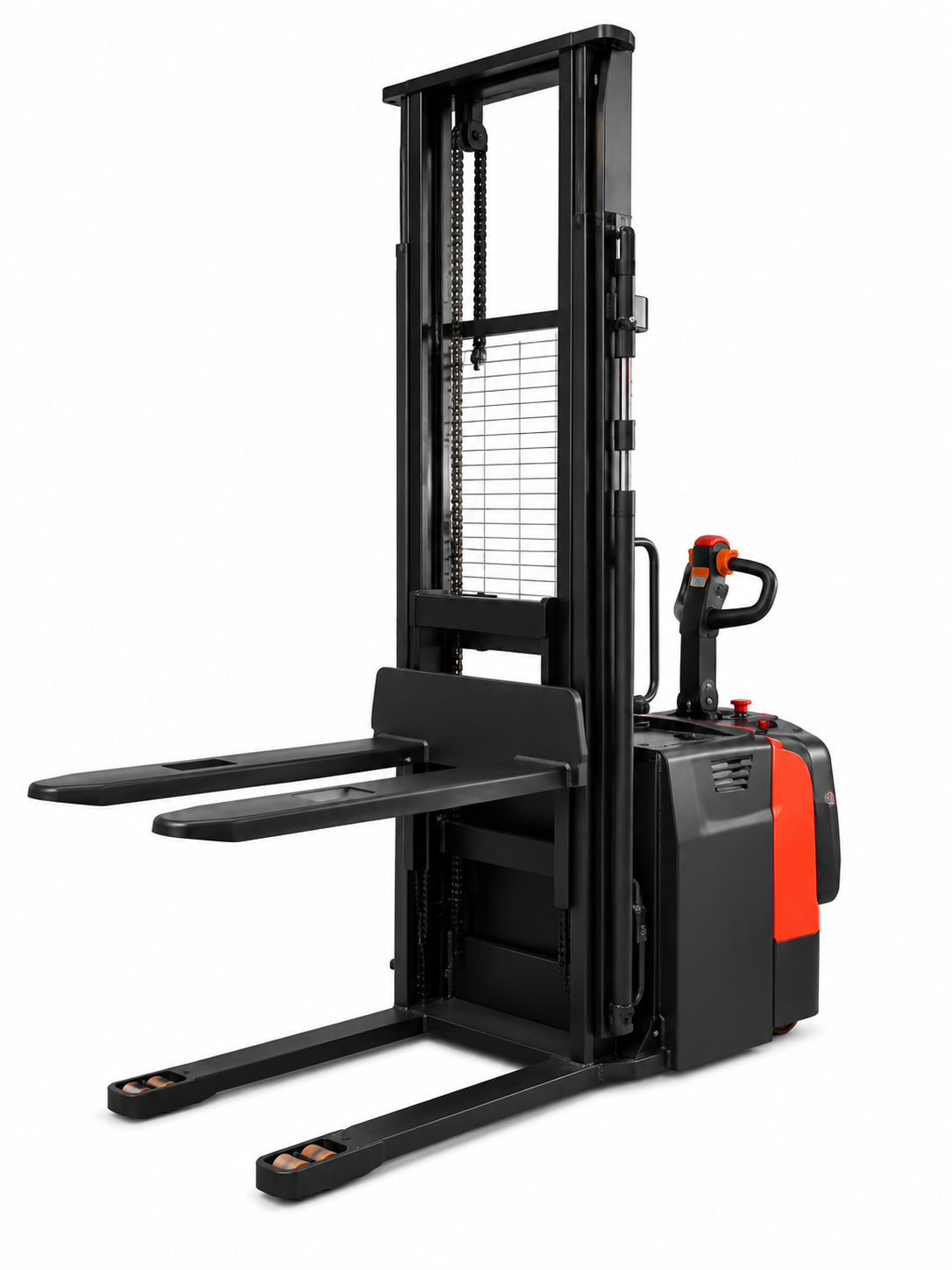

MAXLIFT FULL ELECTRIC STACKER, LFS-2T
The MAXLIFT LFS-2T Full Electric Stacker is expertly engineered for superior performance, reliability, and safety in demanding material handling environments. With a robust load capacity of 2.0 tons (2000 kg), this stacker is built to handle heavy-duty lifting tasks with precision and efficiency.
Key Features and Benefits:
Impressive Lifting Performance:
Achieve a maximum lifting height of 3600 mm, with a fork height of up to 3530 mm and a lowered height of just 85 mm. The high ground clearance of 70 mm ensures smooth operation over uneven floors.
Optimal Maneuverability:
With an overall length of 2115 mm and a compact width of 820 mm, the LFS-2T navigates narrow aisles effortlessly. The tight turning radius of 1670 mm further enhances maneuverability in confined spaces.
Durable Construction:
Equipped with industrial-grade polyurethane (PU) wheels and front/rear tire sizes of Ø230 x 70 mm and Ø80 x 70 mm, this stacker provides stability, low rolling resistance, and excellent wear resistance for long-term use.
High-Performance Power Supply:
Powered by a 24V/160Ah lead-acid battery weighing 155 kg, the stacker delivers consistent and reliable energy for extended operations.
Efficient Operation:
Travel speeds of 5.5 to 6 km/h and lift speeds of 0.01/0.16 m/s guarantee productive material transport and placement. The lowering speed ranges from 0.11 to 0.1 m/s, allowing for controlled and safe operation.
Safety and Control:
The LFS-2T features a dependable electromagnetic service brake for maximum safety during operation, even under heavy loads.
User-Friendly Design:
A spacious platform measuring 503 x 455 mm and adjustable fork dimensions (180 x 685 x 1150 mm) support a wide variety of palettes and materials, meeting diverse warehouse needs.
Heavy-Duty Build:
The stacker boasts an overall height of 2305 mm and a self weight of 1305 kg, ensuring stability and endurance during heavy lifting cycles.
Applications:
Ideal for warehouses, logistics centers, manufacturing plants, and distribution facilities, the MAXLIFT LFS-2T Full Electric Stacker is the professional’s choice for reliable, efficient, and safe material handling.
Choose the MAXLIFT LFS-2T for your heavy-duty stacking requirements—delivering power, precision, and lasting performance.
