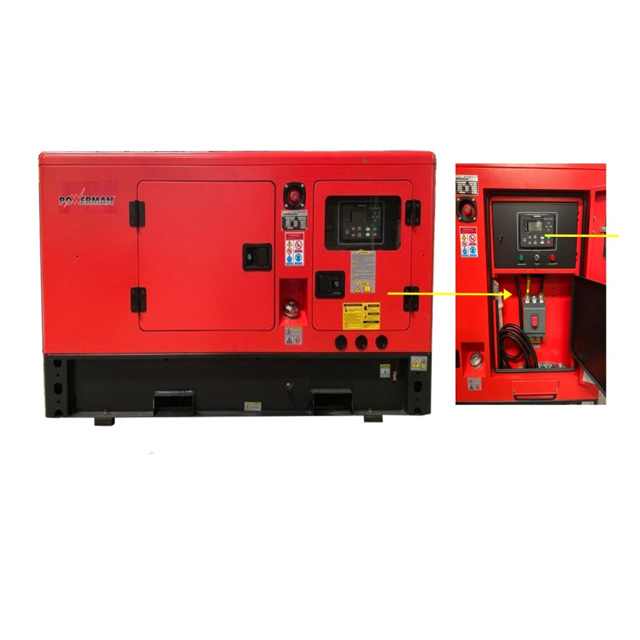

POWERMAN Diesel Silent Type Generator Set with ATS - PMC75000D-S1-ATS

A feed pump is a mechanism in diesel engine fuel systems that feeds fuel from the tank via the sedimenter and fuel filter before sending it to the injection pump . Although the injection pump pumps fuel, because its ability to take in fuel is limited, the feed pump compensates for this. Some diesel transfer pumps are rotary vane pumps, others are gear pumps. Electric diesel transfer pumps can be purchased in 12 volt, 24 volt, 230 volt and in ac and dc versions. A diesel water pump is a type of water pump that uses a diesel engine for power. It is used to transport water from one location to another for a variety of purposes including irrigation, dewatering, and firefighting. A diesel pump, which is usually referred to as a diesel fuel injection pump, is a somewhat complex mechanical piece of equipment. It is the mechanism that is used to pump fuel from the fuel tank into the carburetor, so it does just as the name suggests. Pumps are mechanical devices that use energy to move fluids from one point to another. The main application of pumps is to move fluids, such as gasses, oils, and water. An impeller or propeller is a part of a pump that helps move fluids through the device Pumps are mechanical devices that use energy to move fluids from one point to another. The main application of pumps is to move fluids, such as gasses, oils, and water. An impeller or propeller is a part of a pump that helps move fluids through the device. An impeller pump is a pump that uses an impeller.
₱1.00
Manufacturer: Powerman
SKU: PMC75000D-S1-ATS
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
+ -
Genset Model / Code PMC75000D-S1-ATS PMC75000D-S3-ATS
Genset Type Silent Type Silent Type
Prime Power Output 55kVa / 55kW 68 kVA / 55 kW
Standby Power Output 60kVa / 60 kW 75 KVa / 60 kW
Consumption 100% (L/H) 15.8 15.8
dB (A) @ 7m 70 70
Tank (L) 200 200
Engine Model 4BTA3.9-G2 483.9-G2
Number of Cylinders 4 4
Cylinder Arrangement Vertical In Line Vertical In Line
Cycle 4-Stroke 4-Stroke
Aspiration Turbo charged Turbo charged
Bore x Stroke (mm x mm) 102 x 120 102 x 120
Displacement (Liter) 3.9 3.9
Compression Ratio 16:05:01 16:05:01
Prime Power / Speed (kW/rpm) 60/1800 60/1800
Stand by Power / Speed (kW/rpm) 65/1800 65/1800
Speed Governor Electrical Electrical
Cooling System Water Cooled
40 celcius Radiator
Water Cooled
40 celcius Radiator
Speed Stability (%) < 5% < 5%
Total lubrication system capacity (L) 11 11
Coolant capacity (without radiotor) (L) 7.9 7.9
Fuel Consumption at 100% Load (g/kWh) 220 (at 1800 rpm)
Starter Motor DC24V DC24V
Alternator AC24V AC24V
Alternator Model HK224E-1 HK224E-3
Exciter Type Brushless, Self-excited Brushless, Self-excited
Power Factor 1 0.8
Voltage Adjust Range <5 %
Voltage Regulation NL-FL < ±0.5 %
Insulation Grade H Class H Class
Protection Grade IP 23 IP 23
Overall Size L x W x H (m) 2.28 x 1 x 1.3 2.28 x 1 x 1.3
Weight 1120kg 1080 kg





Genset Model / Code PMC125000D-S1-ATS PMC125000D-S3-ATS
Genset Type Silent Type Silent Type
Prime Power Output 91kVa / 91kW 114 kVA / 91 kW
Standby Power Output 100kVa / 100 kW 125 KVa / 100 kW
Consumption 100% (L/H) 26.3 26.3
dB (A) @ 7m 70 70
Tank (L) 300 300
Engine Model 6BT5.9-G1 6BT5.9-G1
Number of Cylinders 6 6
Cylinder Arrangement Vertical In Line Vertical In Line
Cycle 4-Stroke 4-Stroke
Aspiration Turbo charged Turbo charged
Bore x Stroke (mm x mm) 102 x 120 102 x 120
Displacement (Liter) 5.9 5.9
Compression Ratio 17.5:1 17.5:1
Prime Power / Speed (kW/rpm) 105 / 1800 105 / 1800
Stand by Power / Speed (kW/rpm) 115 / 1800 115 / 1800
Speed Governor Mechanical Mechanical
Cooling System Water Cooled
40 celcius Radiator
Water Cooled
40 celcius Radiator
Speed Stability (%) < 5% < 5%
Total lubrication system capacity (L) 16.4 16.4
Coolant capacity (without radiotor) (L) 9.1 9.1
Fuel Consumption at 100% Load (g/kWh) 221 (at 1800 rpm)
Starter Motor DC24V DC24V
Alternator AC24V AC24V
Alternator Model HK274C-1 HK274C-3
Exciter Type Brushless, Self-excited Brushless, Self-excited
Power Factor 1 0.8
Voltage Adjust Range <5 %
Voltage Regulation NL-FL < ±0.5 %
Insulation Grade H Class H Class
Protection Grade IP 23 IP 23
Overall Size L x W x H (m) 2.73 x 1.06 x 1.48 2.73 x 1.06 x 1.48
Weight 1620 kg 1620 kg



Genset Model / Code PMC42000D-S1-ATS
Genset Type Silent Type
Prime Power Output 30kVa / 30 kW
Standby Power Output 33kVa / 33 kW
Consumption 100% (L/H) 9.5
dB (A) @ 7m 71.5
Tank (L) 42.3
Engine Model 4B3.9-G1
Number of Cylinders 4
Cylinder Arrangement In Line
Cycle 4-Stroke
Aspiration Turbo
Bore x Stroke (mm x mm) 102 x 120
Displacement (Liter) 3.91
Compression Ratio 16:05:01
Prime Power / Speed (kW/rpm) 40/1800
Stand by Power / Speed (kW/rpm) 44/1800
Speed Governor no
Cooling System Water Cooled
Speed Stability (%) < ± 0.25 %
Total lubrication system capacity (L) 8
Coolant capacity (without radiotor) (L) 8
Fuel Consumption at 100% Load (g/kWh) <215
Starter Motor 24V
Alternator 24V
Alternator Model HKN184G
Exciter Type Brushless, Self-excited
Power Factor 1
Voltage Adjust Range ±1.0 % with 4% engine governing
Voltage Regulation NL-FL <2% / <50
Insulation Grade H Class
Protection Grade IP 22
Overall Size L x W x H (m) 2.23 x 1 x 1.3
Weight 830 kg
