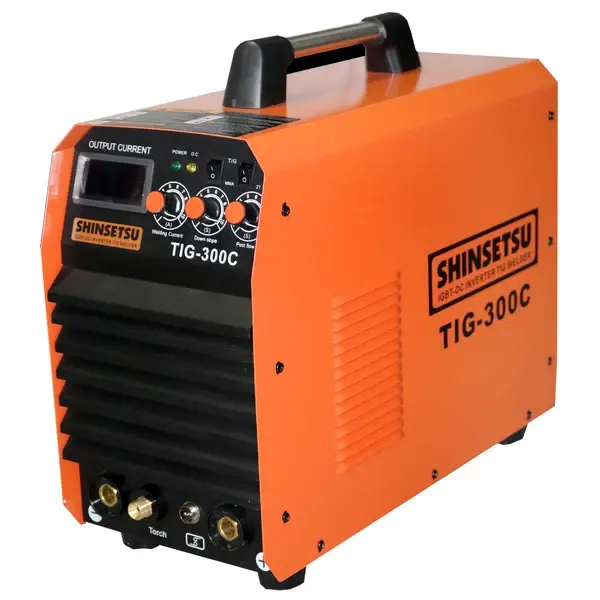

Shinsetsu Tig Welder Inverter, TIG-300C

Product Description: Shinsetsu TIG Welder Inverter, TIG-300C

The Shinsetsu TIG-300C Welder Inverter is engineered for professional welders demanding outstanding precision and performance. Boasting advanced inverter technology, this TIG welder delivers superior arc stability and efficient energy use while supporting a range of intensive welding applications.

Key Features and Specifications:

• Input Power: 220 – 240 V ± 15%, Single Phase (1 ph)
• Frequency: 50 – 60 Hz
• Rated Input Power: 10.2 kVA (TIG), 7.6 kVA (MMA)
• Arc Force Range: 0 ~ 50 A
• Efficiency: High energy efficiency of 85%
• Rated Duty Cycle: 60%, ensuring consistent high-performance operation
• Output No-load Voltage: 61 V
• Current Adjustment Range: 15 ~ 275 A (TIG) / 20 ~ 250 A (MMA)
• Ignite Mode: High-Frequency (HF) ignition for reliable arc starts
• Down Slope Time: 0 ~ 5 s
• Post Flow Range: 0.5 ~ 10 s for optimal welding finish
• Power Factor: 0.76
• Protection Grade: IP 23 for robust outdoor and workshop use
• Insulation Class: F for extended durability
• Weight: 22 kg (Net), 23 kg (Gross)
• Dimensions: 480 x 210 x 360 mm

Standard Accessories:

• Electrode Holder 300A with 35 mm² Welding Cable (1 pc)
• Ground Clamp 300A with 25 mm² Welding Cable (1 pc)
• Air-cooled TIG Torch (1 pc)

Additional Accessories:

• Short Cap (1 pc)
• Long Cap (1 pc)
• Collet (2 pcs)
• Collet Body (2 pcs)
• Alumina Cap (3 pcs)

Expert Summary:
The Shinsetsu TIG-300C is meticulously designed for efficiency, power, and adaptability across TIG and MMA welding modes. With built-in HF ignition, a wide current adjustment range, robust protection standards (IP 23), and a high-duty cycle, it stands out as the reliable choice for fabricators, contractors, and repair workshops. This machine is supplied with essential professional-grade accessories, making it a complete solution for demanding welding environments.

Choose the Shinsetsu TIG-300C for exceptional reliability, control, and weld quality—perfectly suited for both industrial and workshop applications.
