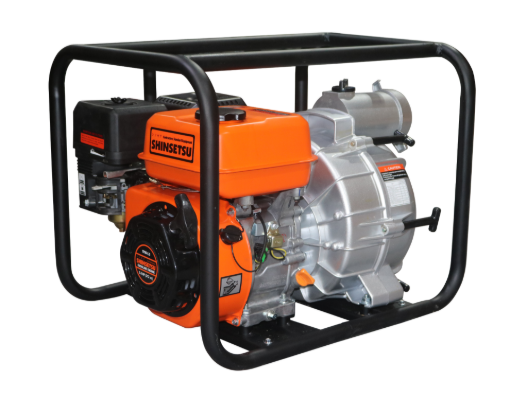

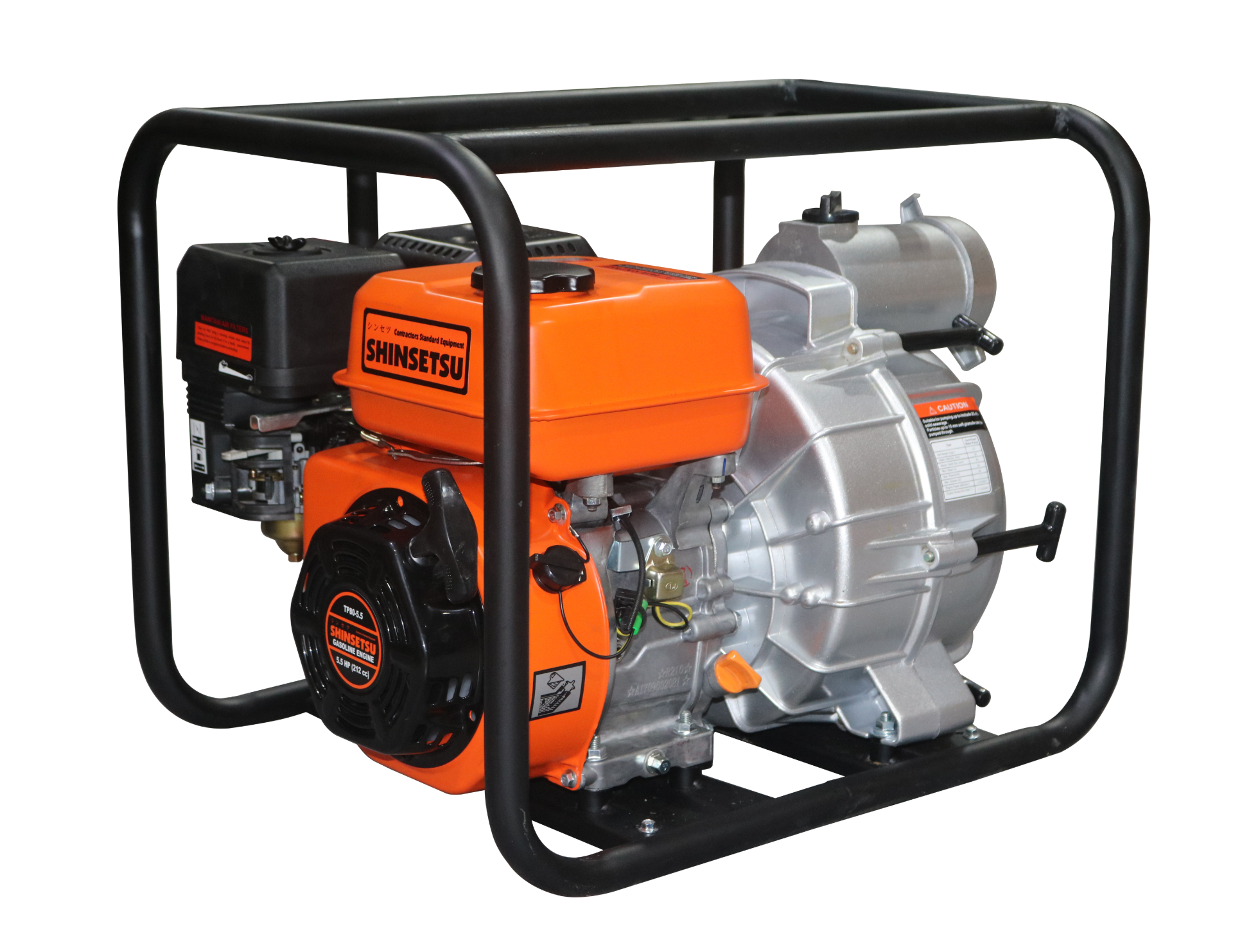

Product Description: Shinsetsu Trash Pump Diesel, Model TP80-10D
The Shinsetsu Trash Pump Diesel TP80-10D is a high-performance, professional-grade solution engineered for robust dewatering and water transfer applications. Featuring advanced diesel engine technology and reinforced for demanding environments, the TP80-10D guarantees maximum efficiency and durability—making it the pump of choice for industrial, construction, agriculture, and municipal works.
Key Features:
- Engine Power: Equipped with a powerful SDE-186FAE diesel engine, the TP80-10D delivers a rated output of 6.6 kW (8.9 hp) and a maximum power of 7.3 kW (9.9 hp) at 3600 rpm, providing reliable operation in the most challenging situations.
- High Capacity: The 80 mm (3 in) suction and discharge port diameter allows for a rated flow rate of 72 m³/h, easily handling high volumes of water, sludge, or debris.
- Efficient Performance: With a rated total head of 32 m and a maximum suction head of 8 m, this trash pump is ideal for a wide variety of scenarios, from floodwater removal to site dewatering.
- Robust Combustion System: Featuring direct injection technology, the 418 cm³ displacement engine ensures superb combustion efficiency, fuel economy, and dependable startup.
- Quick Self-Priming: Boasting a rapid self-priming time of 90 seconds per meter, this model minimizes downtime and maximizes productivity on-site.
- Versatile Operation: Offers both manual and electric starter systems for flexible, user-friendly operation.
- Compact and Portable: Weighing just 60 kg and measuring 675 x 445 x 575 mm, the TP80-10D combines powerful performance with practical portability.
Technical Specifications:
| Parameter | Value | |----------------------------|----------------------------| | Engine Type | SDE-186FAE | | Rated Output | 6.6 kW (8.9 hp) @ 3600 rpm | | Max Power | 7.3 kW (9.9 hp) @ 3600 rpm | | Displacement | 418 cm³ | | Suction & Discharge Port | 80 mm (3 in) | | Rated Flow Rate | 72 m³/h | | Rated Total Head | 32 m | | Max Suction Head | 8 m | | Self-Priming Time | 90 s/m | | Fuel Tank Capacity | 5.5 L | | Lubricating Oil Capacity | 1.65 L | | Starter System | Manual / Electric Start | | Rotation Speed | 3600 rpm | | Net Weight | 60 kg | | Dimensions (L x W x H) | 675 x 445 x 575 mm |
Standard Accessories:
- 1 pc Aluminum Filter Net
- 2 pcs Pipe Connection Gasket
- 1 pc Tool Set
- 2 pcs Joint Pipe
- 2 pcs Joint Grip
- 3 pcs Hoop Assembly
Why Choose Shinsetsu TP80-10D?
Shinsetsu stands for uncompromising quality, reliability, and advanced engineering. The TP80-10D trash pump is specifically designed for heavy-duty tasks, ensuring smooth and trouble-free liquid handling even with particulates or debris present. Its powerful diesel engine, fast self-priming capability, and complete accessory kit make it a comprehensive and ready-to-use solution for professionals.
Choose the Shinsetsu Trash Pump Diesel TP80-10D—engineered for power, built for reliability.
For other heavy-duty requirements, consider our larger model: the TP100-12D, offering a 100 mm discharge, 96 m³/h flow rate, and reinforced 89 kg frame for the toughest environments.
