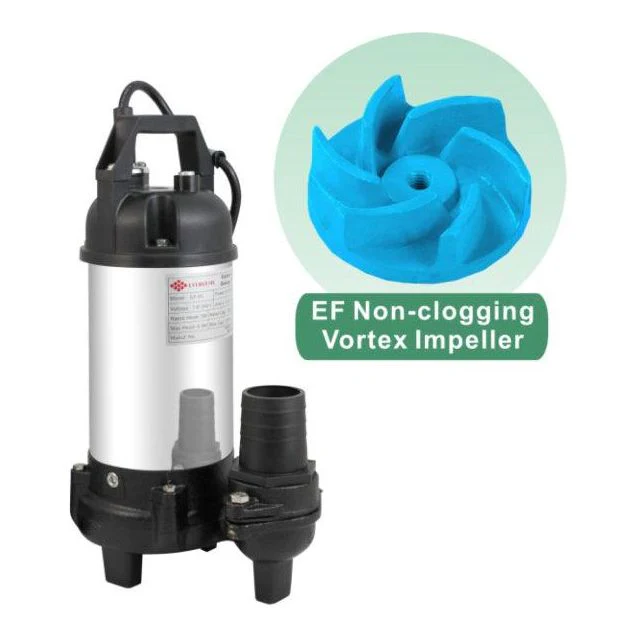

SUBMERSIBLE VORTEX SEWAGE PUMP

Be the first to review this product
INDUSTRIAL SERIES SUBMERSIBLE VORTEX SEWAGE PUMP BY EVERGUSH MODEL EF-05 , EFLO-10 , EF-20 , EF-30, EF-30T ,- EF-50T , EF-75T , EF-100T , EF-150T MOTOR SPECS : 2P dry or oil type motor * Insulation : F Class Protection : Ip68
SKU: EF-05 , EFLO-10 , EF-20 , EF-30, EF-30T ,- EF-50T , EF-75T , EF-100T , EF-150T
Vendor: Screwking Hardware Corp.
*
Old price: ₱14,100.00
₱1.00
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Delivery date: 3-5 days

Industrial Series
Submersible Vortex Sewage Pump

Features

  • Non-clogging impeller minimizes abrasives wear and allows large solid passage.
  • Dry motor with overload protector; Cable with an epoxy resin sealed water-proof cable hood; Use deep groove C3 bearing to extend life time.
  • Superior abrasion resistant double mechanical seal to ensure best seal effect.
  • Oil seal mounted outside of seal chamber stops solids gathering around seal faces.

Applications

  • Waste water drainage from all industries
  • Sewage drainage from hotels, restaurants, schools, malls and public facilities.
  • Fishery, animal husbandry, stock farm, piggery, fecal sewage tank in waste water treatment plant.
  • Drainage of waste water containing fibrous additives from leather factory, dyeing factory and food processing factory.

Motor Specs:

  • 2P Dry or Oil type motor.
  • Insulation: F class.
  • Protection: IP68
ModelEF-05EF-10EF-20EF-30
Power1/2 HP1 HP2 HP3 HP
Phase1⌀1⌀1⌀1⌀
Voltage220V/60Hz
Current3A6A12A18A
Discharge dia.50mm50mm80mm80mm
Max Head10m13m17m20m
Max Capacity280 l/min345 l/min630 l/min700 l/min
Price14,100.0019,900.0031,500.0049,900.00



ModelEF-30TEF-50TEF-75TEF-100TEF-150T
Power3HP5HP7.5HP10HP15HP
Phase3⌀3⌀3⌀3⌀3⌀
Voltage220V/60Hz
Current9.2A14.8A22A29.3A36.26A
Discharge dia.80mm80mm80mm100mm100mm
Max Head20m22m22m36m38m
Max Capacity700 l/min1100 l/min1100 l/min1600 l/min1900 l/min
Price37,000.0057,500.0079,000.00110,000.00176,800.00
