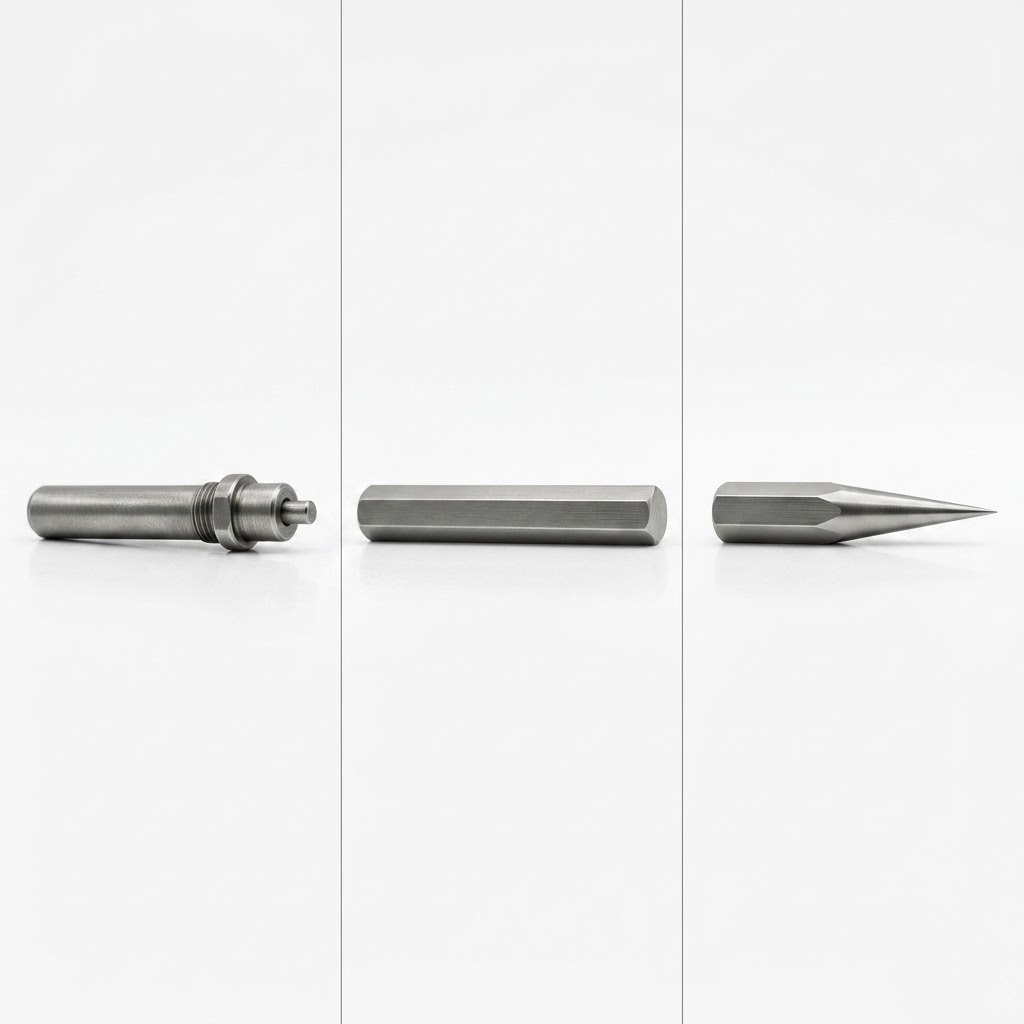

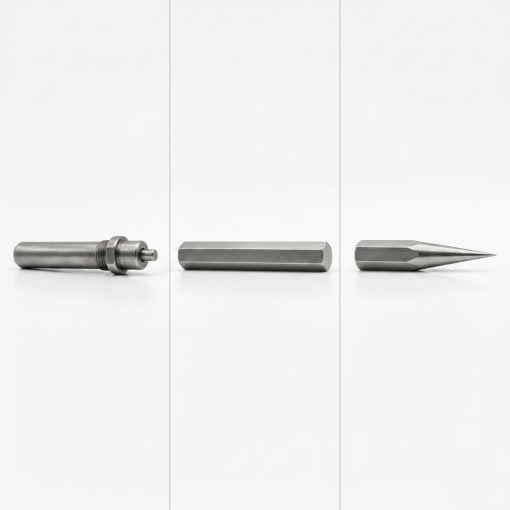

TOKU CHISEL AND MOIL POINTS
Engineered for durability and precision, TOKU Chisel and Moil Points deliver superior performance in rigorous demolition, construction, and mining applications. These tools are forged from high-grade materials to ensure impact resistance, longevity, and compatibility with a range of leading pneumatic and hydraulic breakers.
Each product features precision-machined shanks, robust body types, and optimized point tips, ensuring efficient energy transfer and consistent operation. Available in multiple models, TOKU’s offerings are trusted by professionals globally in demanding environments.
MODEL SPECIFICATIONS
THOMAS TURTON / ENGLAND
M-1
- Shank Size: 1 1/4” x 6”
- Overall Length: 620 mm
- Shank Type: TPB-60/73/90
- Body Type: Standard
- Point Tip: Chisel/Moil Available
- Compatible Model: TPB-60/73/90
M-1S
- Shank Size: 1 1/4” x 6”
- Overall Length: 550 mm
- Shank Type: TPB-60/73/90
- Body Type: Standard
M-1L
- Shank Size: 1 1/4” x 6”
- Overall Length: 760 mm
- Shank Type: TPB-60/73/90
- Body Type: Long
STANDALL / ITALY
M-4
- Shank Size: 1” x 4 1/4”
- Overall Length: 580 mm
- Shank Type: TPB-30/40, TCD-30
- Body Type: Standard
C-1
- Shank Size: 1 1/4” x 6”
- Overall Length: 610 mm
- Shank Type: TPB-60/73/90
C-2
- Shank Size: 1 1/8” x 6”
- Overall Length: 610 mm
- Shank Type: TPB-50N/230N
C-4S
- Shank Size: 1” x 4 1/4”
- Overall Length: 500 mm
- Shank Type: TPB-30/40, TCD-20
C-9, M-9
- Shank Size: 22 x 83 mm
- Overall Length: 475–480 mm
- Shank Type: TCD-20, PLA-10
D-1
- Shank Size: 1 1/4” x 6”
- Overall Length: 570 mm
- Shank Type: TPB-60/73/90
D-4
- Shank Size: 1” x 4 1/4”
- Overall Length: 500 mm
- Shank Type: TPB-30/40, TCD-30
DW-1
- Shank Size: 1 1/4” x 6”
- Overall Length: 545 mm
- Shank Type: TPB-60/73/90
DW-4
- Shank Size: 1” x 4 1/4”
- Overall Length: 490 mm
- Shank Type: TPB-30/40, TCD-30
A1
- Shank Size: 1/4” x 6”
- Overall Length: 540 mm
- Shank Type: TPB-60/73/90
A4
- Shank Size: 1” x 4 1/4”
- Overall Length: 505 mm
- Shank Type: TPB-30/40, TCD-30
S-9
- Shank Size: 7/8” x 3 1/4”
- Overall Length: 475 mm
- Shank Type: TCD-20
NARVIK / TAIWAN
M-3N / C-3N
- Shank Size: 15 x 60 mm
- Overall Length: 300 mm
- Shank Type: AA-3B/1.3B, THA-4SRV
M-3L
- Shank Size: 15 x 60 mm
- Overall Length: 600 mm
- Shank Type: AA-3B/1.3B, THA-4SRV
M-5/M-5N
- Shank Size: 10 x 40 mm
- Overall Length: 180/200 mm
- Shank Type: MH-5111/5115, BRH-3
OSAKADA / JAPAN
M-8N / C-8N
- Shank Size: 12 x 53 mm
- Overall Length: 220 mm
- Shank Type: AA-0B
M-7 / C-7
- Shank Size: 26 x 80 mm
- Overall Length: 400 mm
- Shank Type: TCA-7, TCB-130S, G-9S
M-7N, D-7
- Shank Size: 26 x 80 mm
- Overall Length: 450 mm
- Shank Type: TCA-7, TCB-130S, G-9S
M-7L / M-7LL
- Shank Size: 26 x 80 mm
- Overall Length: 600 mm / 1200 mm
- Shank Type: TCA-7, TCB-130S, G-9S
M-15
- Shank Size: 10 mm width
- Overall Length: 250 mm
- Shank Type: TFC-200
M-23 / C-23
- Shank Size: 30 x 87 mm
- Overall Length: 400 mm
- Shank Type: TCB-200
M-33 / C-33
- Shank Size: 35 x 87 mm
- Overall Length: 465 mm
- Shank Type: TCB-300
KOYO / JAPAN
- D-3
- Shank Size: 15 x 60 mm
- Overall Length: 290 mm
- Shank Type: AA-3B/1.3B, THA-4SRV
APPLICATIONS
- Demolition and breaking of concrete and rock
- Road, mining, and construction projects
- Heavy-duty pneumatic and hydraulic breaker operations
KEY FEATURES
- Premium Build: Manufactured from high-grade steel for optimum toughness and wear resistance.
- Precision Engineering: Accurate shank dimensions ensure secure fit and minimal tool wear.
- Global Compatibility: Multiple shank and body types accommodate leading brands and breaker models.
- Versatile Performance: Available in various lengths and point types—including chisel and moil—for tailored application.
For high-performance chisel and moil points with proven reliability, TOKU delivers professional-grade solutions trusted by experts worldwide.
