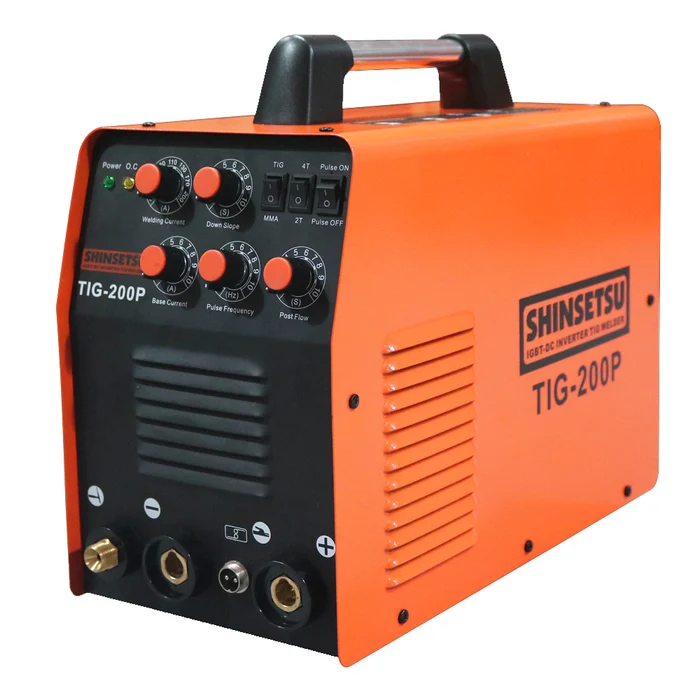

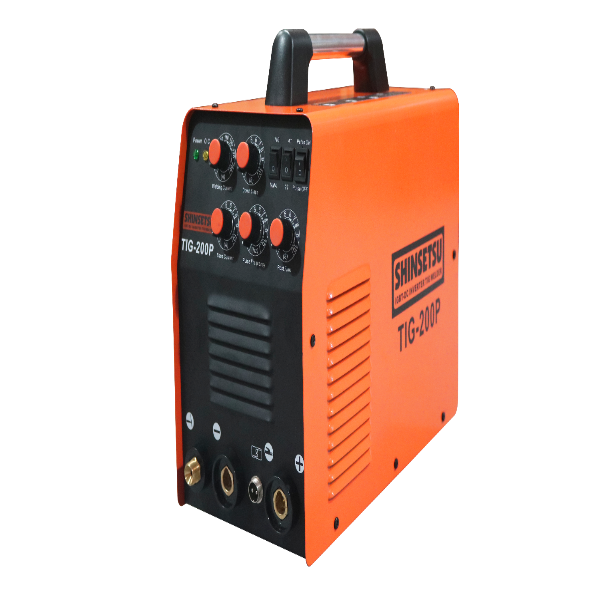

Shinsetsu TIG Welder Inverter, TIG-200P
The Shinsetsu TIG-200P Welder Inverter is a professional-grade TIG welding machine designed for powerful, precise, and reliable welding performance. Engineered with advanced inverter technology, this unit ensures maximum efficiency and usability across a wide range of welding tasks. Whether working in the workshop or on-site, the TIG-200P delivers consistent power, robust safety features, and exceptional results.
Key Specifications:
- Input Power: 220 V, Single Phase (1 ph)
- Rated Working Voltage: 11 ~ 18 V
- Frequency: 60 Hz
- Efficiency: 85%
- Power Factor: 0.76
- Rated Input Power: 5.6 kVA
- Insulation Class: F
- Rated Duty Cycle: 60%
- Ignite Mode: High Frequency (HF)
- Amperage Range (TIG/MMA): Up to 200 A (TIG) / 160 A (MMA)
- Open Circuit Voltage: 56 V
- Net Weight: 12 kg
- Gross Weight: 13 kg
- Dimensions: 350 x 150 x 230 mm
- Pulse TIG Function: Enhanced heat and weld puddle control
Standard Accessories Included:
- Electrode Holder (300 A) with 25 mm² welding cable
- Ground Clamp (300 A) with 16 mm² welding cable
- Welding Mask
- Chipping Hammer
- TIG Torch (Air-cooled)
Additional Accessories:
- Short Cap (1 pc)
- Long Cap (1 pc)
- Tungsten Electrode (2 pcs)
- Collet (2 pcs)
- Collet Body (2 pcs)
- Alumina Cap (3 pcs)
Expert Features & Performance:
The TIG-200P features a powerful HF starting system for superior arc ignition and reduced tungsten contamination. Its 60% duty cycle at maximum amperage ensures reliability during long welding sessions, while the robust insulation and lightweight design (12 kg net weight) provide both safety and portability. The integrated PULSE TIG function enhances heat control, making it perfect for precision welding and minimizing warping on thin materials.
Ideal for professionals, the Shinsetsu TIG-200P TIG Welder Inverter is your trusted solution for both TIG and MMA welding applications. Designed for efficiency, safety, and exceptional weld quality – redefine your welding capabilities with Shinsetsu.
Contact us to learn more or to arrange a demonstration of the TIG-200P today!
